REFOX FM45 Laminating & Debubbling Machine

REFOX FM45  Laminating & Debubbling Machine

REFOX FM45

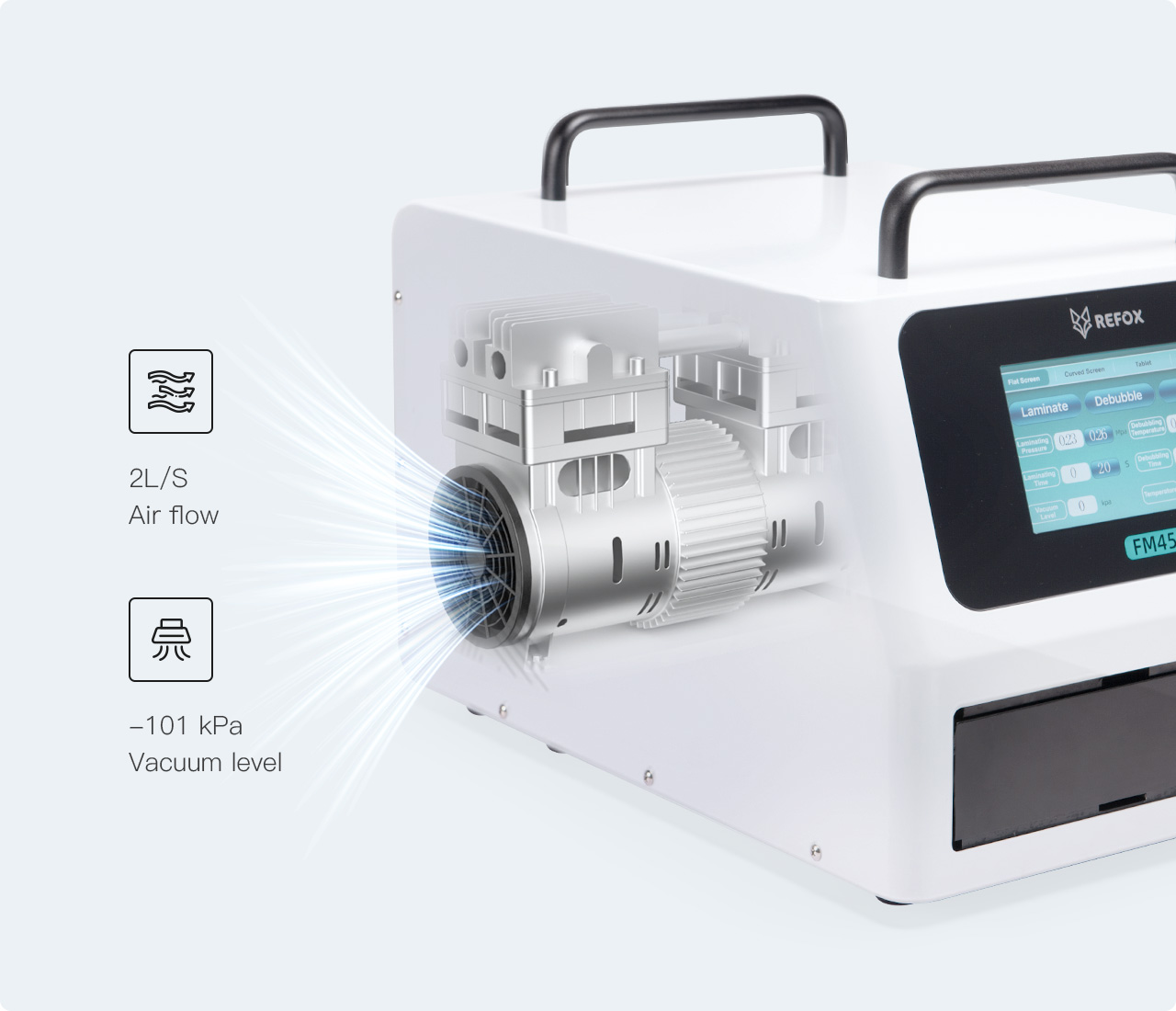

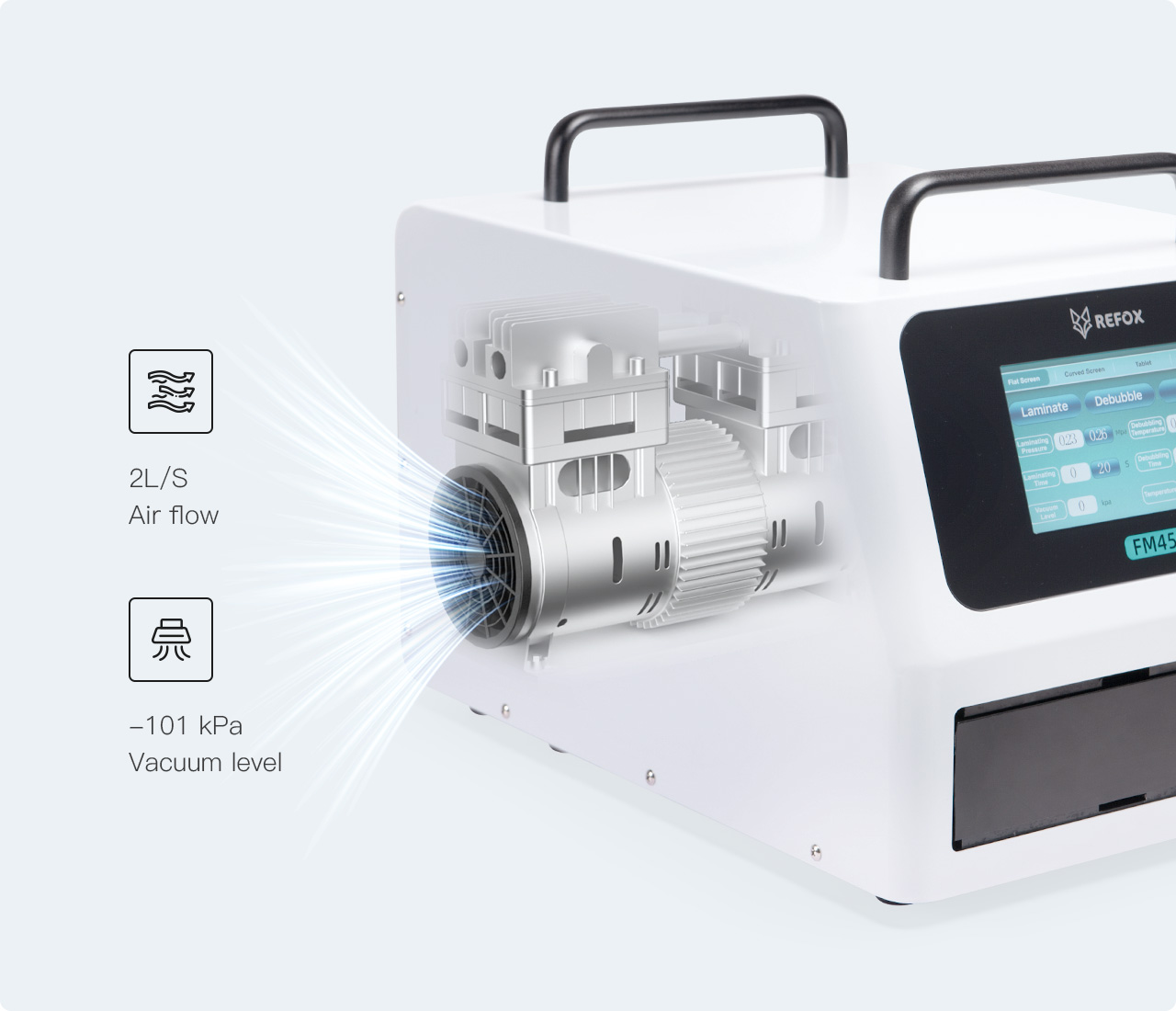

REFOX FM45 is an advanced laminating and debubbling machine tailored for the refurbishment industry, addressing the increasing demand for specialized equipment. Compatible with smartwatches, phone screens (both curved and flat), and tablets up to 12.9 inches, the FM45 streamlines the process in one machine. Its built-in oil-free vacuum pump delivers a 2L/s air flow and 101 kPa vacuum pressure, achieving bubble removal in just 5 minutes. The 100mm large air cylinder and 15-inch sealing chamber ensure stable pressure and flawless screen lamination without bubbles. Pre-set operating parameters for laminating and debubbling enable one-press operation, making it a powerful and user-friendly solution for refurbishing professionals seeking speed, precision, and reliability in every operation.

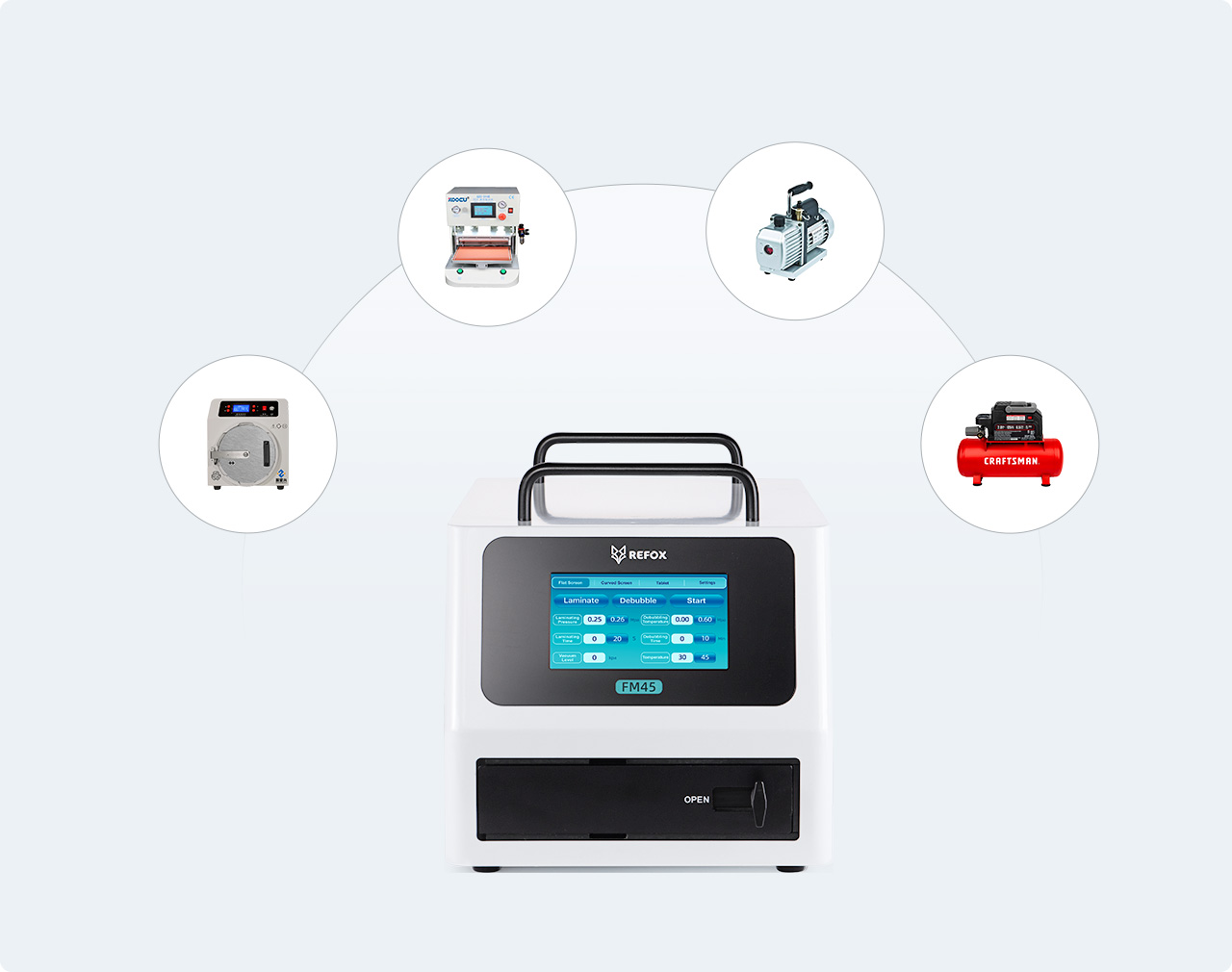

4-in-1, save space

Debubbling machine

Laminating machine

Vacuum pump

Air compressor

4-in-1, save space

One machine for all screen types

One machine for all screen types

Curved screen

Flat screen

Debubbling in 5 mins

Debubbling in 5 mins

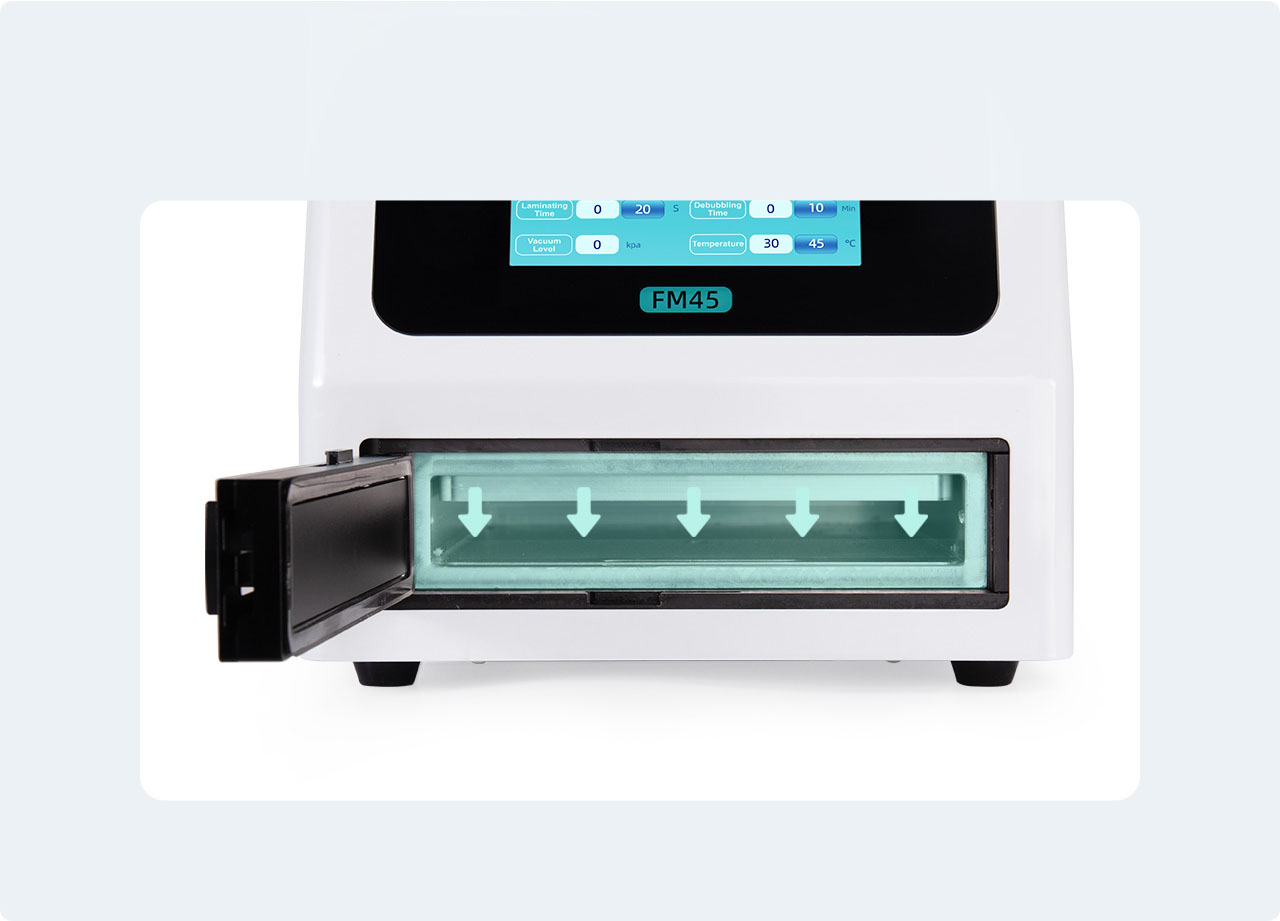

Bubble free, every time
Max. 0.75 MPa/109 Psi

Bubble free, every time Max. 0.75 MPa/109 Psi

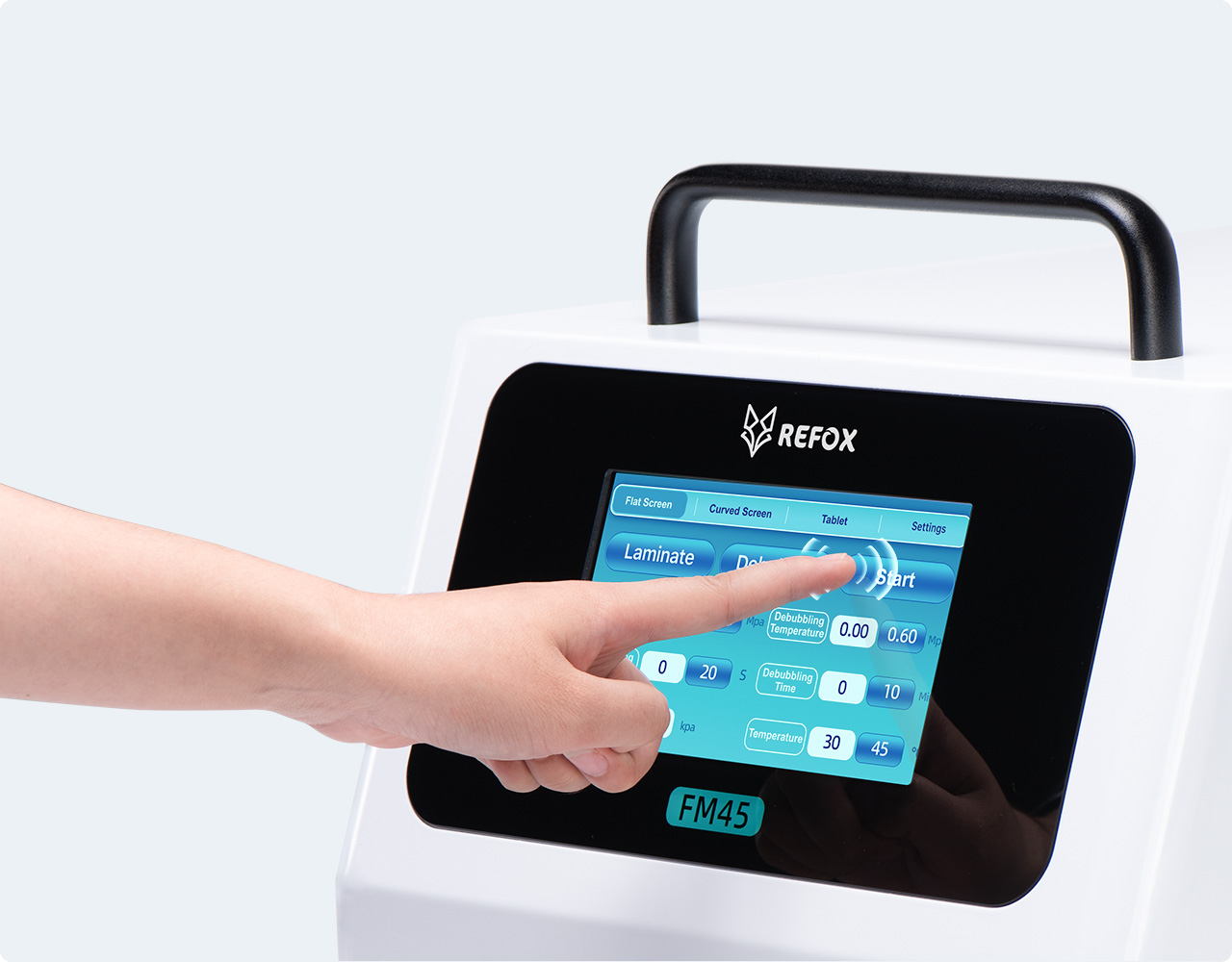

Pre-set parameters, just press Start

It does the rest

Pre-set parameters, just press Start

Product Specifications

Model
FM45
Voltage
110V/220V
Power
750W
Cylinder Diameter
100 mm
Oil-Free Vacuum Pump Speed
2 L/S
Lamination & Debubbling Chamber
Supports 12.9" Max
Product Size
517*338*358 mm
Packaging Size
570*425*410 mm
Net Weight
40 kg
Packaging Weight
47 kg
