REFOX AP16 Pro & AP25 Pro

REFOX AP16 Pro and AP25 Pro are newly upgraded polishing machines designed to refurbish iPhone and Android phone screens and back covers. Designed with an upgraded, motor-operated grinding brush, both models deliver highly effective polishing for screens, including iPhone 12 and newer models, without leaving any marks or scars. Each of them features a fully motorized grinding disc for efficient operation and reduced manual effort. The adjustable pressure feature allows for precise control, while the durable grinding brush head ensures consistent polishing performance over its lifecycle.
The AP16 Pro hosts up to 16 devices, while the AP25 Pro expands capacity to 25 devices—all within a compact footprint. Both models make brush head replacement quick and efficient, taking only about 30 seconds, which significantly reduces maintenance time and cost.

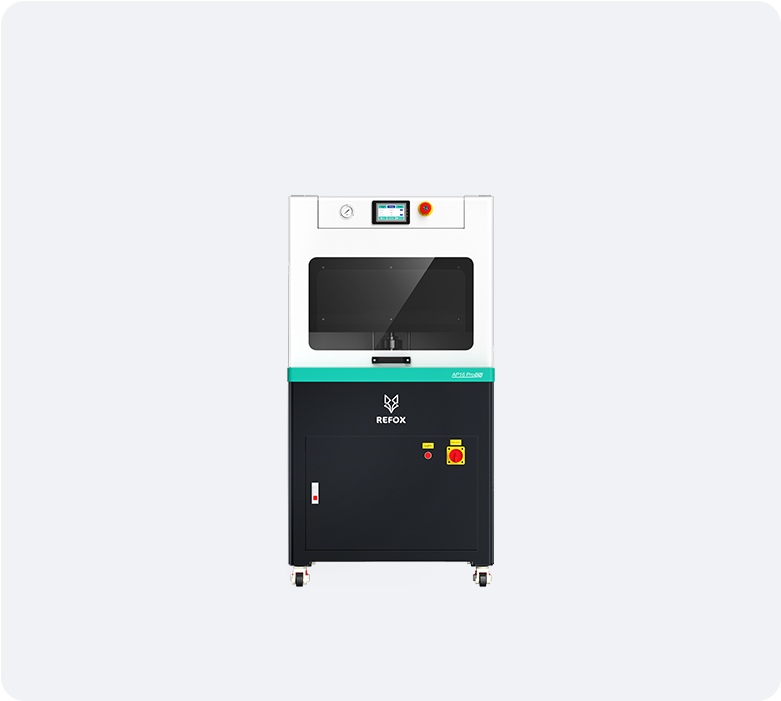

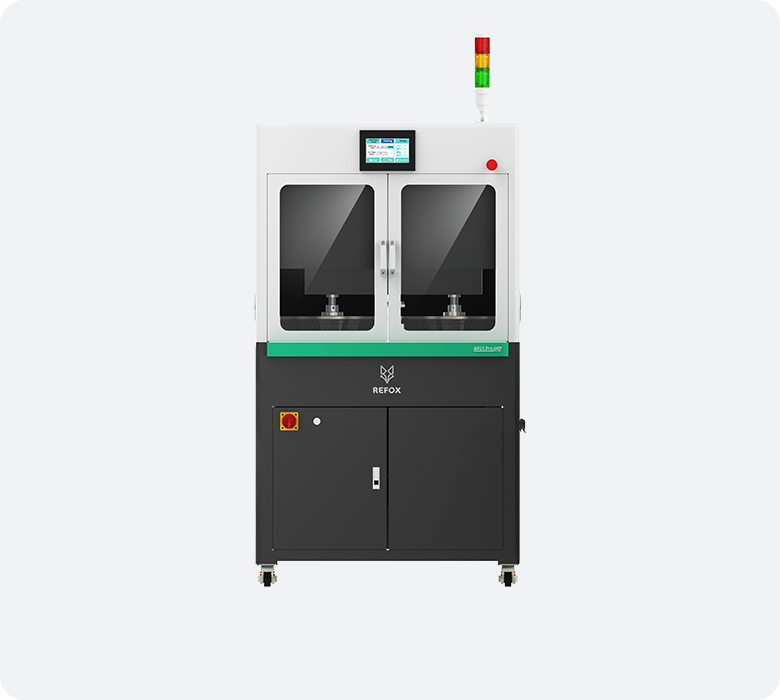

Expanded Capacity

16 or 25 devices within a compact footprint

16 device slots
refox ap16 pro

device slots

8 device slots
refox ap16 pro

device slots

Product Specifications

Product Model
Polyurethane Grinding Brush Diameter
Grinding Disc Diameter
Maximum Grinding Capacity
Grinding Brush Motor Power
Grinding Disc Motor Power
Maximum Machine Power
Water Pump Power
Water Tank Capacity
Power Input
Product Size
Packaging Size
Net Weight
Gross Weight
AP16 Pro
400 mm
650 mm
16 devices
1.0KW
2.2KW
4KW
120W
10 L
AC 220V/110V
750 x 810 x 1444 mm
850 x 900 x 1650 mm
300 kg
340 kg
AP25 Pro
400 mm
820 mm
25 devices
750W
2.2KW
4KW
120W
20 L
AC 220V/110V
900 x 900 x 1600 mm
1140 x 1140 x 1920 mm
420 kg
520 kg
